Accessories for PROFIBUS^®-Tester V5

PROFIBUS-PA Adapter
enables the measurement of PROFIBUS-PA networks with PROFIBUS-Tester V5

Reaction optimized PROFIBUS D-Sub adapter cable
especially for measurement during operation

Adapterset for M12-connection technology
connecting field devices with M12-connectors, incl. terminating resistor

Digital Leakage Current Clamp
Detection of improper shield currents resulting from earthing, equipotential bonding or EMC problems, 40 – 1,000 Hz, MIN/MAX, DATA HOLD, ever-ready case, measuring cables (fits in empty compartment of aluminum casefor PROFIBUS-Tester V5)

5 pcs. D-Sub-service adapter PROFIBUS-DP
The D-sub service interface provides an access point for testing PROFIBUS networks if the existing
D-sub connectors have no service socket or if bus stations are connected via a terminal block. It is rail mounted like a terminal block and supplied with 24 VDC by an external power source, 90° angled PROFIBUS connector with screw terminal technology and a switchable terminating resistor included

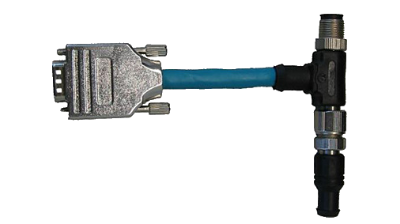

5 pcs. M12- service adapter PROFIBUS-DP
M12 T-connector (IP68), sealing cap for service jack of T-piece and 1 m PROFIBUS-DP cable with M12-jack/plug
